Input voltage: 220V / 380V

Motor power: 3KW / 4KW

Spindle speed: 1400 r / min

Maximum load cutting blade size: 24 inches (600mm)

Overall dimensions: 120 * 78 * 110cm

Weight: 95KG

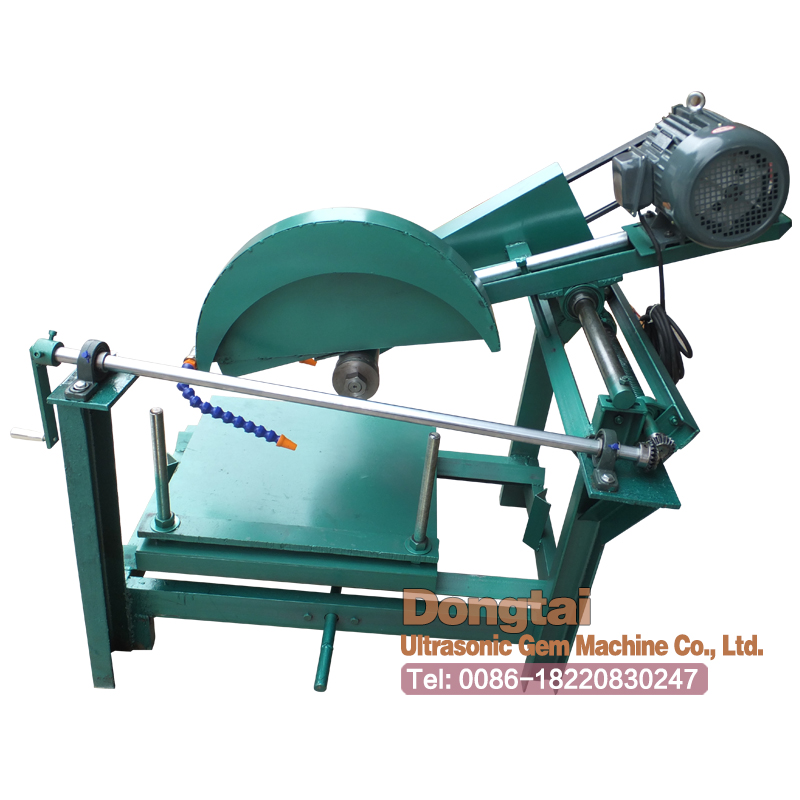

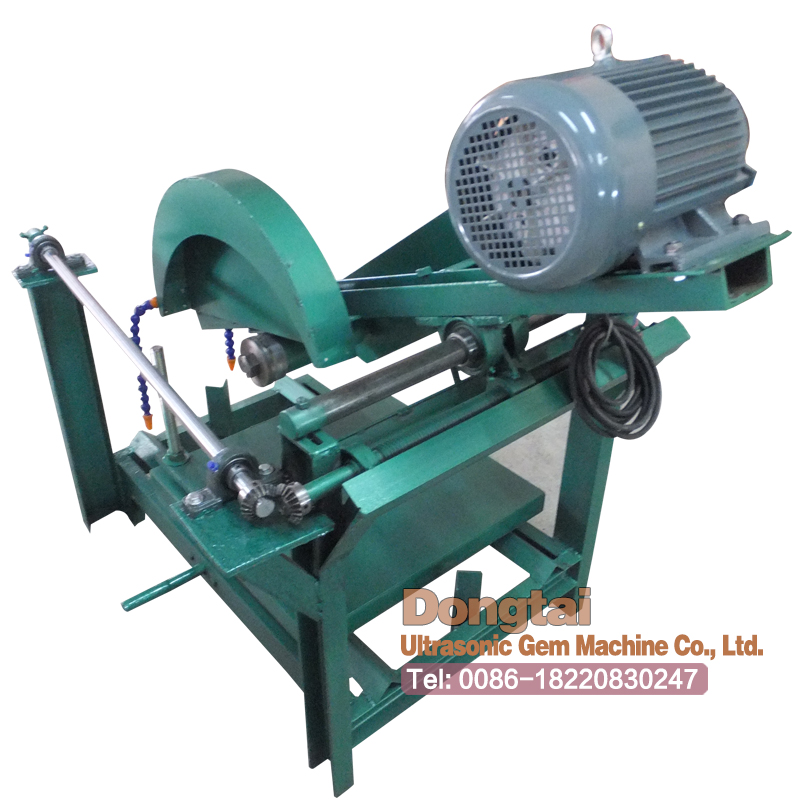

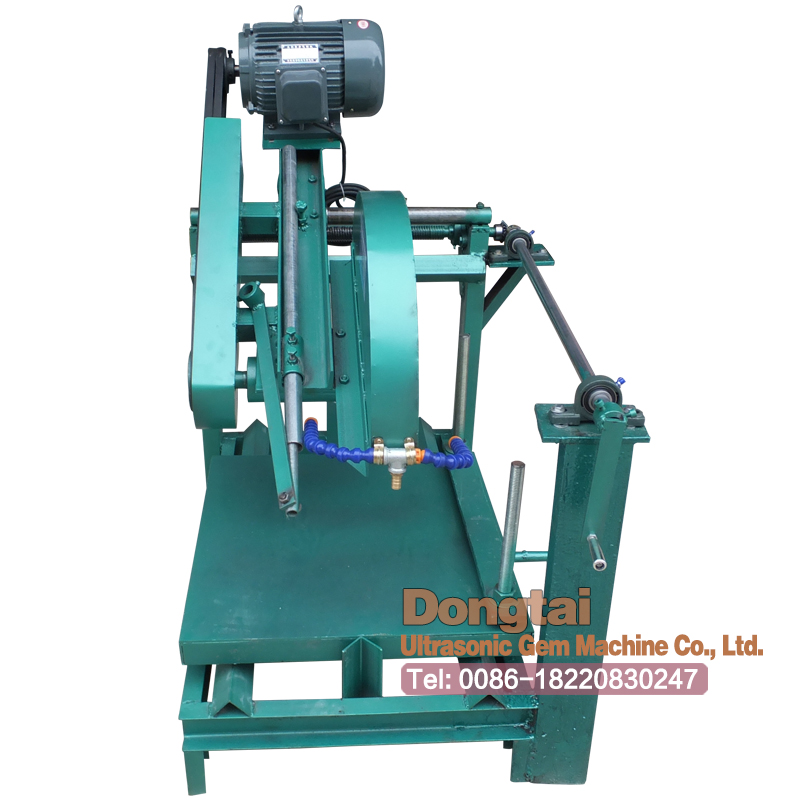

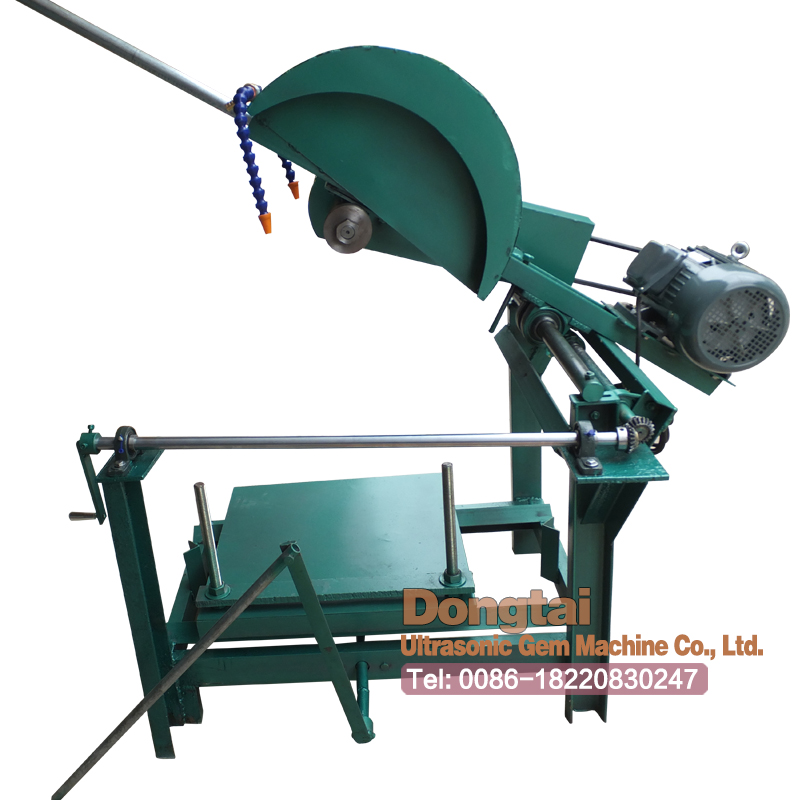

Function: Our company produced a large gemstone feederand increased the itinerary track after improved,, so that in the cutting gem raw materials, it’s convenient, simple and quick to go forward and backward. It could cut both fixed-point cutting, but also at any time in the cutting process Move, speed up the gem cutting speed and cutting the length of the trip, select the cut convenience, an increase of stone fixed card board, in the production process more secure and stable. Increase the front handle joystick, head moving more convenient when the left and right; the other can handle handle switch, with 24v power switch to control the machine main motor 220v or 380v, convenient, safe to use. It is suitable for cutting gemstones of 25cm or less and can load up to 24 "(60cm) blades.
