Product description

Main Parameter:

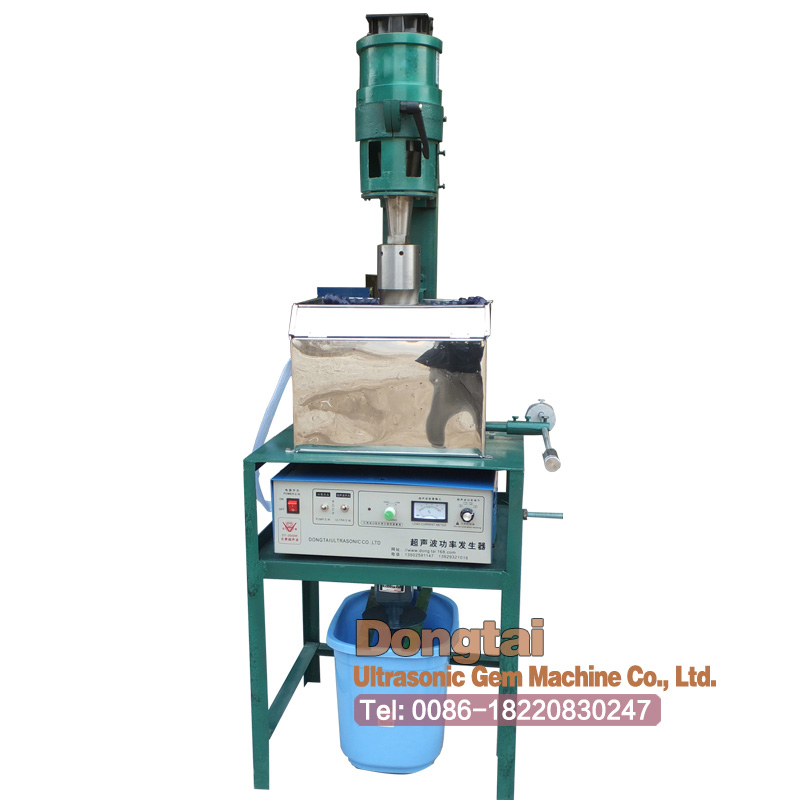

Model:DT410
Voltage:220v
Working frequency:15kHz-20kHz
Drilling Depth:0-50mm
Drilling diameter:0.6-20mm
Dimension:540*500*1500mm
Power:4800W
Carving size:≥12CM/≥18CM

Function:The ultrasonic gem machine operate easily for carving. Featured as high processing speed and low fault rate. Apply auto track frequency protection, the overload protection minimize the machine fault rate. There are several types as: 1200W ultrasonic gem drilling machine, 1500W ultrasonic gem drilling machine,2000W ultrasonic gem auto drilling and carving machine, 2500W ultrasonic gem auto drilling and carving machine,4800W ultrasonic gem auto carving machine.

The 1200/1500W ultrasonic gem drilling machine, featured with high drilling speed and low fault rate.

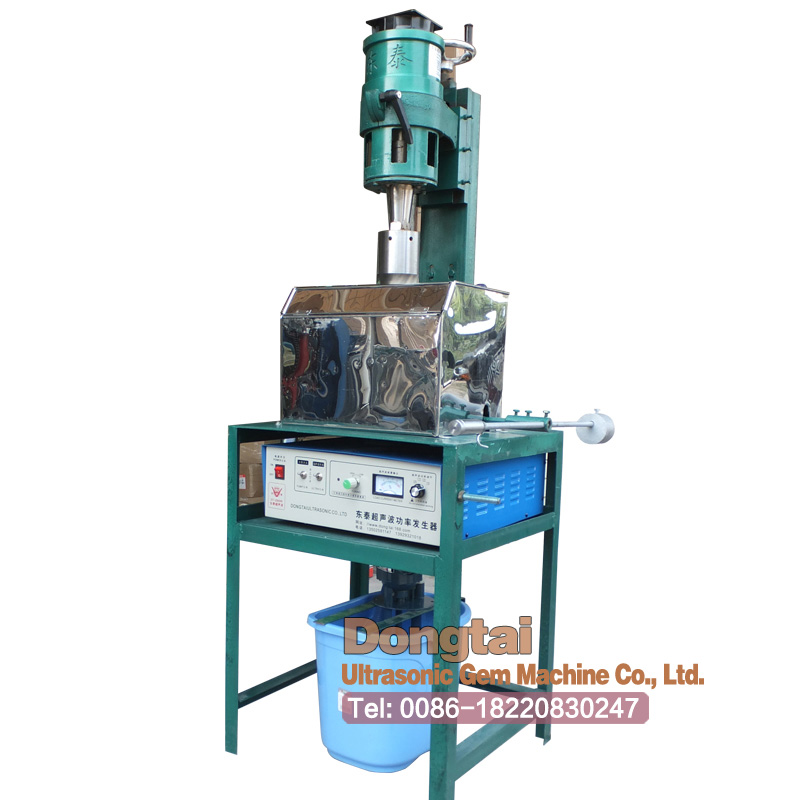

The 2000W ultrasonic gem auto drilling and carving machine, with high drilling speed and also can used for carving, adopt auto track frequency protection, and overload protection to lower the machine fault rate. Stable in usage, easy to change for carving head for gemstone carving function, auto adjust power base on overload condition.

The 2500W ultrasonic gem auto drilling and carving machine, is a comprehensive type, wide usage, easy adjustment,adopts advanced frequency tracking and overload protection, the machine automatically adjust the power output according to different load quantity, in order to achieve the best power output condition.Working stably, adjust convenient, can work for 24 hours without stop, good protection, automatic detection and real-time detection of status in the process of production, through the indicator light display machine status in time, and the personel can adjust frequency to achieve the best effect. The wide carving range, with Max. 120mm carving head, high processing speed, and drilling is achieved after changing the drilling head.

The 4800 w ultrasonic engraving machine is professional to undertake large size gems carved. Processing range is big which can reach to 180 mm diameter head carving, Its processing speed is fast which has relatively high efficiency to hand-carved. Carved products can be according to the demand for mass production and processing.

About fitting

Item:125W water pump
Spec:125W
Item:90W water pump
Spec:90w
Item:Pump
Spec:40W

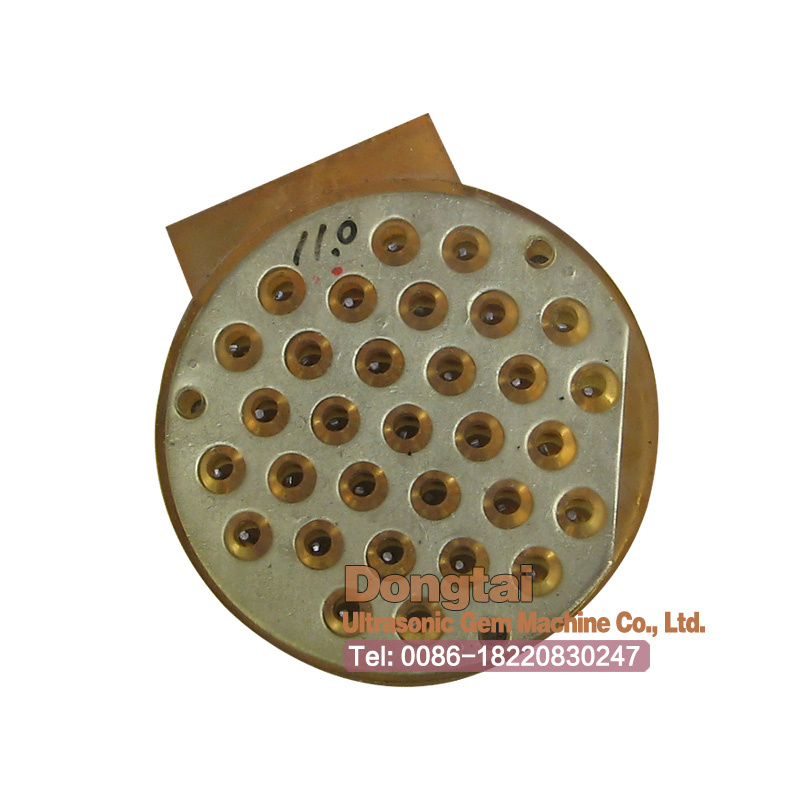

Item:Abnormal shape mold
Spec:4holes
Item:Down mold
Spec:2inch
Item:High quality tin rod
Spec:0
Item:Burning needle tool
Spec:0
Item:Emery
Spec:150#/180#
Item:Top bead mold
Spec:as detail
Item:Wrench
Spec:0
