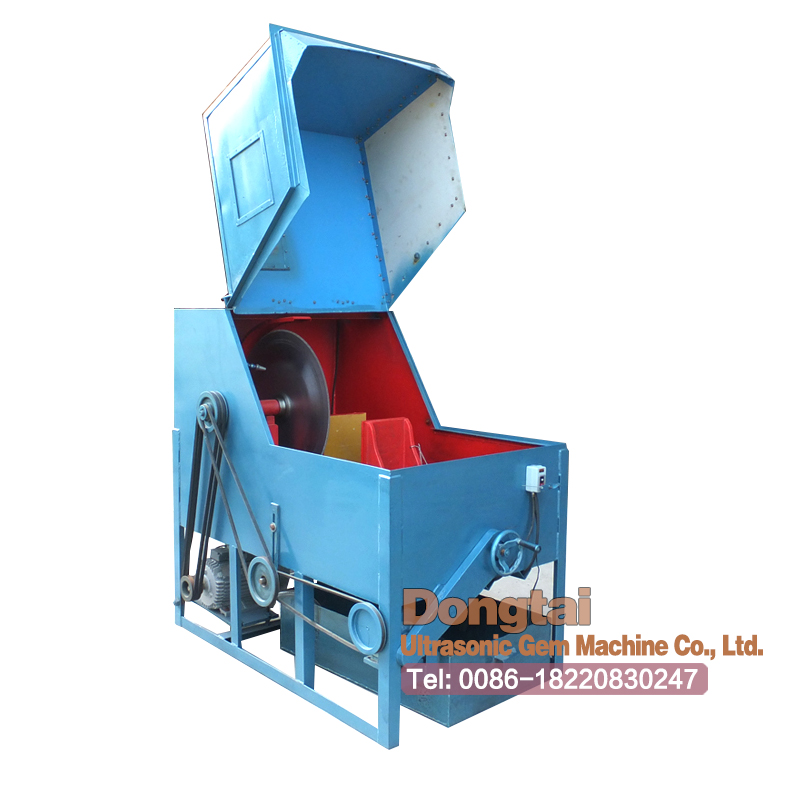

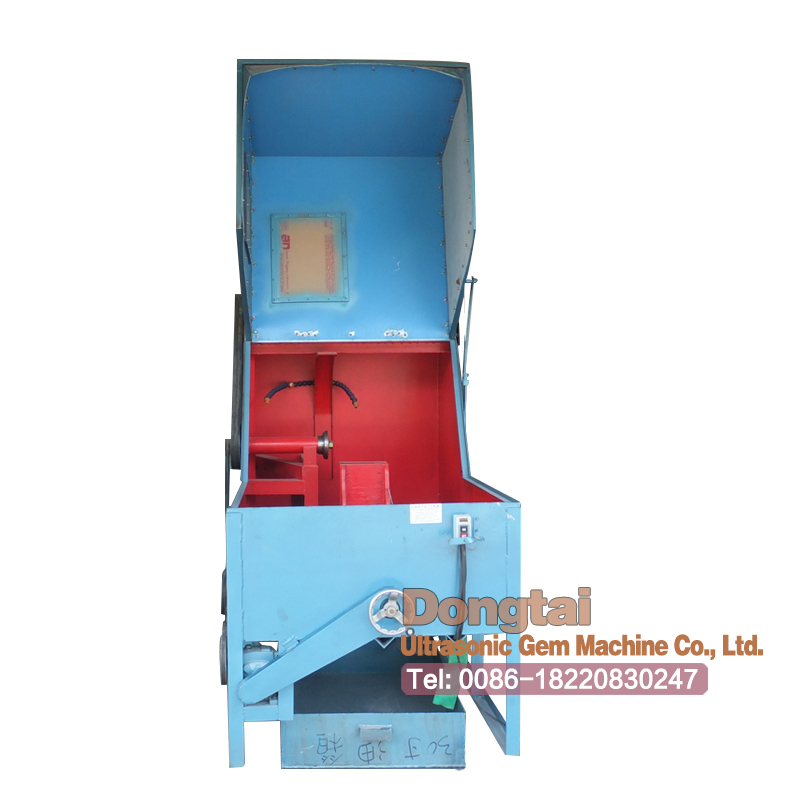

Gem cutting machine 30 inches
Item No.:DT103
Product:Gem cutting machine 30 inches
Specification:380V/4KW
Remark:gemstone

inquiry

Product description

Main Parameters:
Voltage:380V
Power:4KW
Spindle speed: 1400r/min
Dimension: 840*540*1070mm
Weight: 150kg
Function:this automatic single-tool seal gem cutting machine adapt high quality bearing and rail to provide high cutting accuracy and cutting speed. Apply automatic feeder and travel control switch for stable operation.The  gem material is fixed on the platform and the travel switch distance is set, then the machine can auto stop after the cutting process is finished. The available type varied from 16 to 36inch.

Features:
1.    One man can operate 5-6 machines
2.    With the protective cover, more secure, low noise, non-pollution
3.    Apply oil pump to cycle supply cutting oil, to lower the cost and consumables
4.    Suitable for cutting the gem with width less than 40cm

5.    The max. load blade size is 30inch(75cm)



About fitting

  • Item:Blade with jag
    Spec:6/8/10inch

  • Item:Inclined blade with jag
    Spec:6/8/10inch

  • Item:Blade without jag
    Spec:8inch
