Gem cutting machine 16 inches
Item No.:DT103

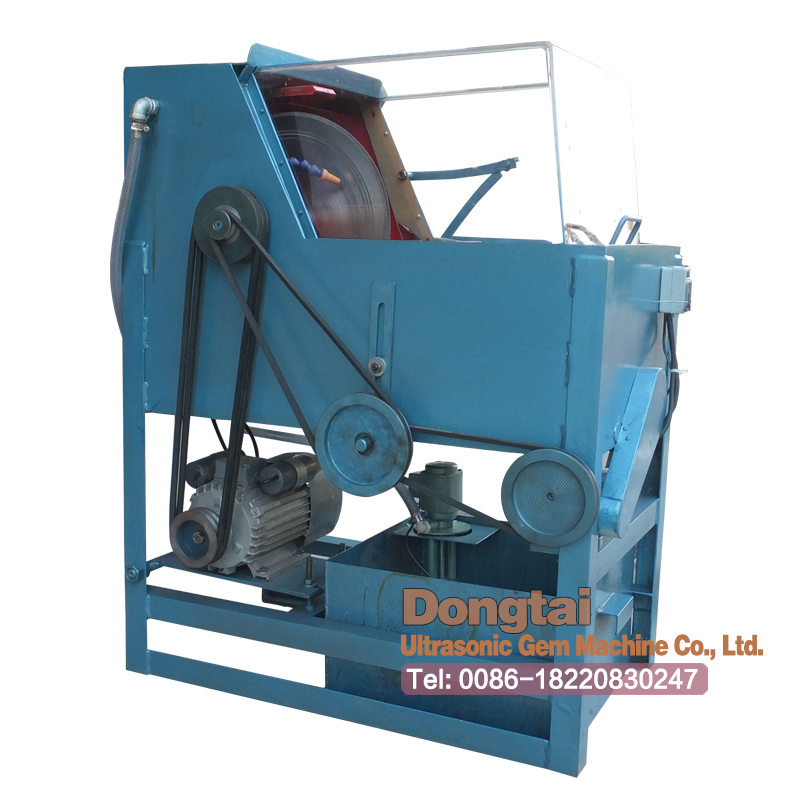

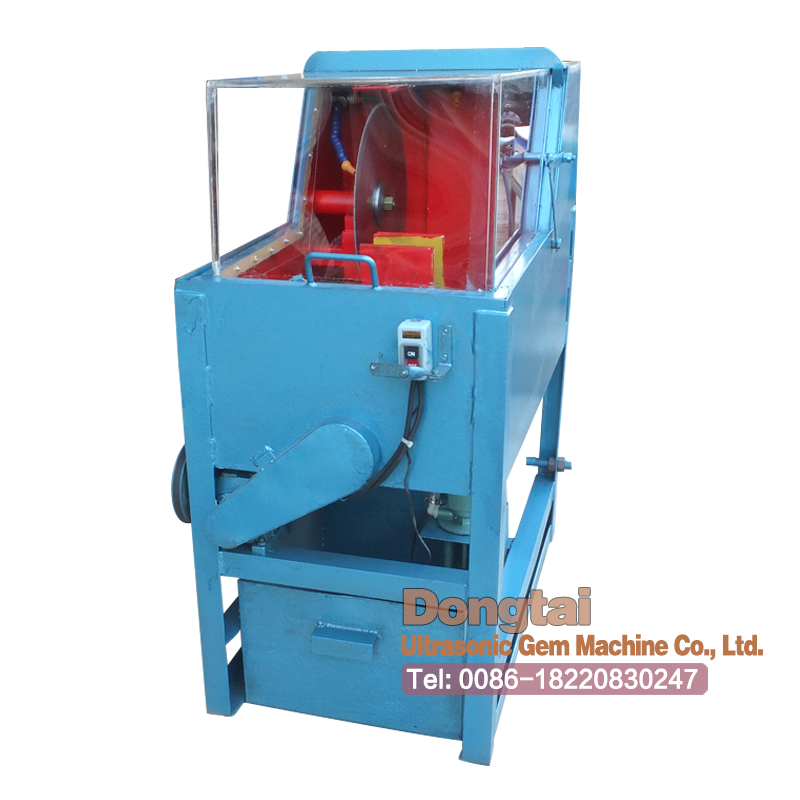

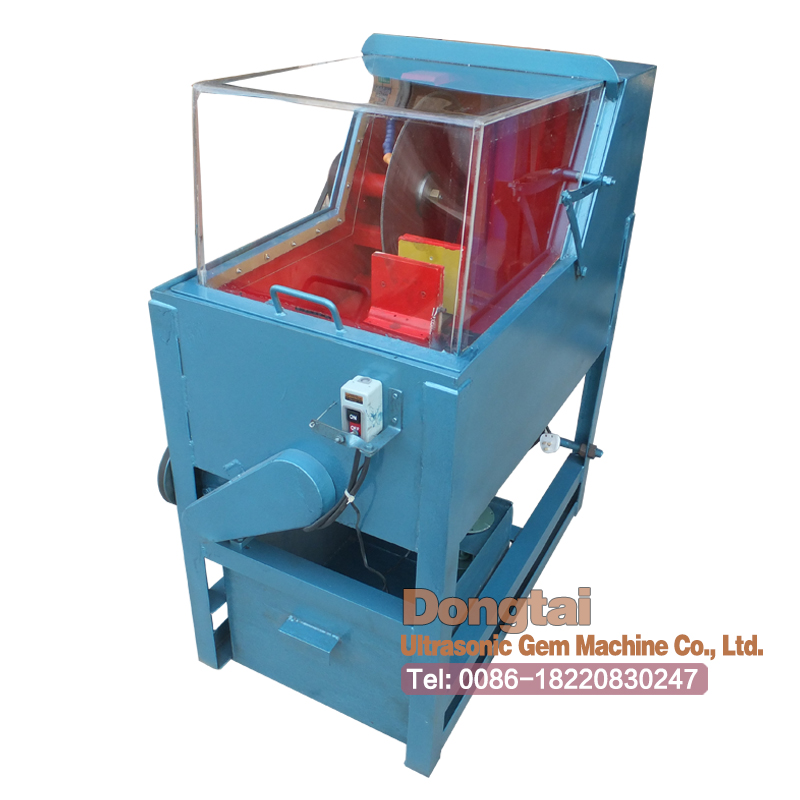

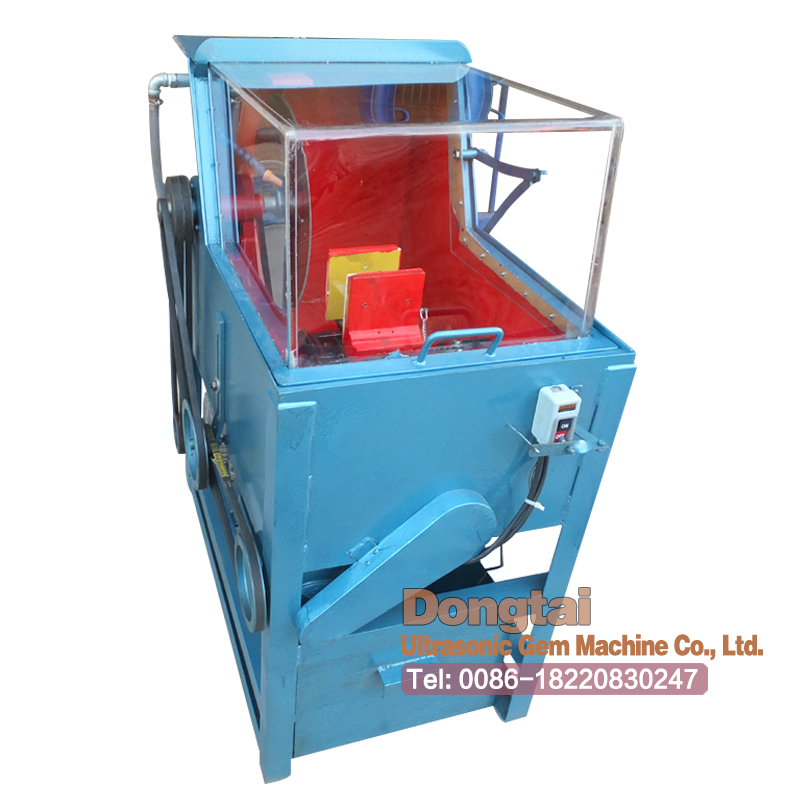

Product:Gem cutting machine 16 inches
Specification:220v/2.2KW
Remark:16inch

inquiry

Product description

Main Parameters:
Voltage:220V
Power:2.2KW
Spindle speed: 1400r/min
Dimension: 840*540*1070mm
Weight: 150kg

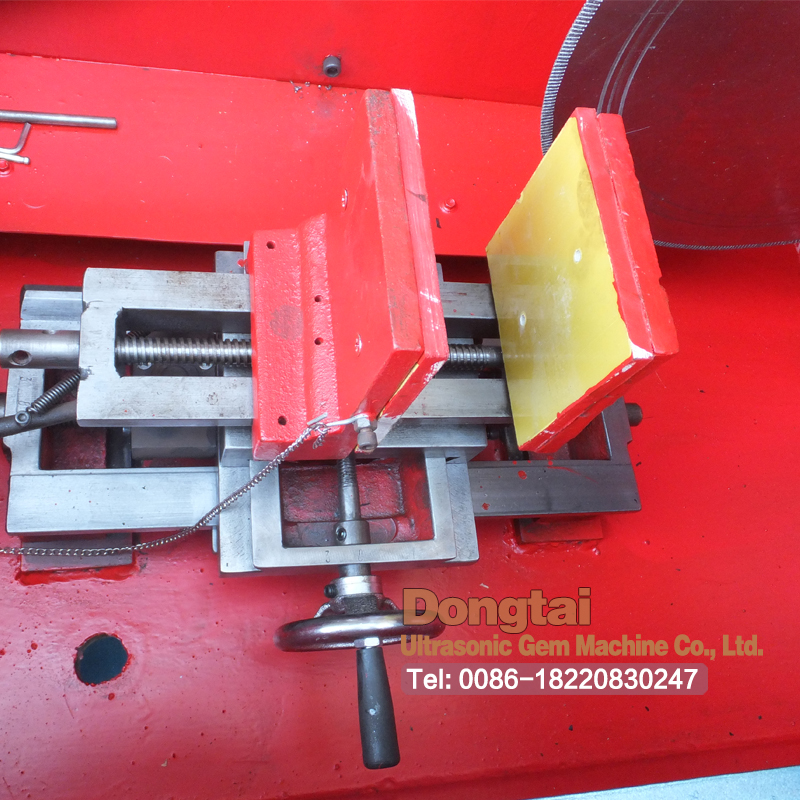

Function:the automatic single-tool seal gem cutting machine adapt high quality bearing and rail to provide high cutting accuracy and cutting speed. Apply automatic feeder and travel control switch for stable operation.The  gem material is fixed on the platform and the travel switch distance is set, then the machine can auto stop after the cutting process is finished. Suit for cutting stones within 40cm.

Features:
1.    One man can operate 5-6 machines
2.    With the protective cover, more secure, low noise, non-pollution
3.    Apply oil pump to cycle supply cutting oil, to lower the cost and consumables
4.    Suitable for cutting the gem with width less than 40cm
5.    The max. load blade size is 30inch(75cm)

About fitting

  • Item:Blade with jag
    Spec:6/8/10inch

  • Item:Inclined blade with jag
    Spec:6/8/10inch

  • Item:Blade without jag
    Spec:8inch
